Description
Details and Advantage

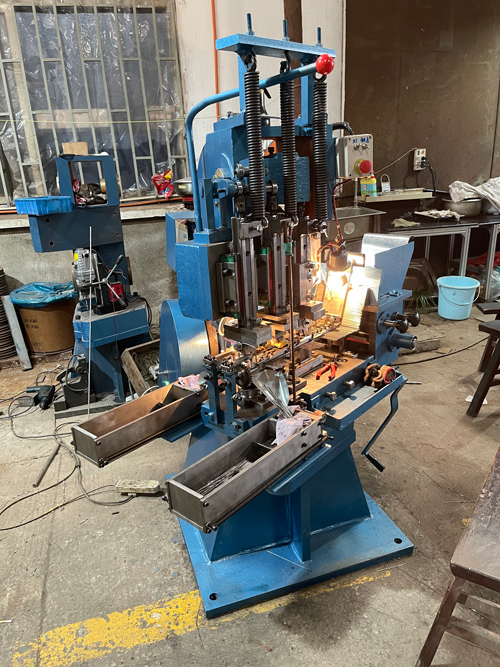

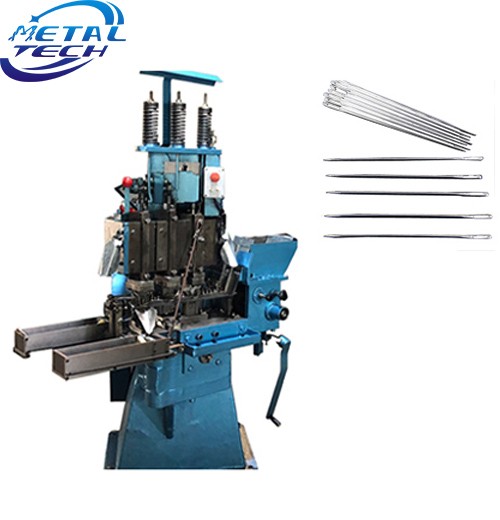

1. Our Sewing needle making machine adopts a reversible safety cover which could protect the operators when the machine is running. Besides, it is also convenient to operate and maintain the equipment2. Our molds adopt high-quality Alloy Steel so that the operating life of molds will be longer and saving more time and more efficient.
3. Our sewing needle making machine has a working light, the operator could easy to operate the machine when it is dark. If you don't need it, you can remove the light as well.
|
Item |
Straightening and cutting m/c |
Sharpening machine |
Needle forming machine |
|
Dia. |
0.5mm-1.8mm |
0.5mm-3.0mm |
0.45-1.2mm |
|
Length |
40mm-140mm |
40mm-140mm |
/ |
|
Capacity |
600pcs. /min |
3,500pcs. /min |
450-600pcs. /min |
|
Power |
2.2kw/380V, 3-Phase/50Hz |
1.5kw/380V, 3-Phase/50Hz |
4.5kw/380V, 3-Phase/50Hz |
|
Weight |
600kg |
400kg |
1600kg |
|
Dimension |
1700mm x 1200mm x 1200mm |
900mm x 1100mm x 1300mm |
1300mm x1500mm x 1800mm |
